    WL20e

    Articulated Wheel Loader

    WL20e
    WL20e
    WL20e
    WL20e
    WL20e
    WL20e
    WL20e
    WL20e

    Category:

    Product Information Sheet

    All of the technical information on this product at a glance on the Product Information Sheet.

    Description

    The WL20e wheel loader model is the first purely electrically operated wheel loader from Wacker Neuson. As with all of our wheel loaders, it convinces through first-class performance. Two electric engines, one for the drive system and one for the work hydraulics, ensure that the performance features of the WL20e correspond to those of the conventional machine. At the same time, the wheel loader works completely exhaust free and with significantly lower noise emissions. For the end user, this means greater flexibility in application, environmental protection and significant savings with operating costs.



    • 100% emission-free thanks to wireless battery drive system
    • Up to five hours of running time
    • Comparable performance as with conventional wheel loaders
    • Up to 41% savings in operating costs as well as cost advantages in maintenance and in the service intervals
    • Significantly lower noise pollution

    Engine / Motor
    Travel drive motor – capacity S2 (60 min.) 6.5 kW
    Lifting motor – capacity S3 (15%) 9 kW

    Electrical system
    Operating voltage 12 V

    Weights
    Operating weight 2,350 kg
    Tipping load with bucket – machine straight 1,509 kg
    Tipping load with bucket – machine at angle 1,251 kg
    Tipping load with pallet fork – machine straight 1,112 kg
    Tipping load with pallet fork – machine at angle 916 kg

    Vehicle data
    Bucket capacity Standard bucket 0.2 m³
    Traction drive electrically via universal joint shaft
    Axles T80
    Drivers cab (optional) FSD (EPS, EPS PLus)
    Speed 0 – 15 km/h
    Speed Level 1
    Standard tires 27 x 10.50-15 EM ET-5

    Hydraulic system
    Operating hydraulics – operating pressure 225 bar
    Operating hydraulics – discharge capacity 32 l/min

    Filling capacities
    Hydraulic oil tank 18.5 l
    Hydraulic system 37 l

    • Standard tires
      27 x 10.5-15 EM ET-5

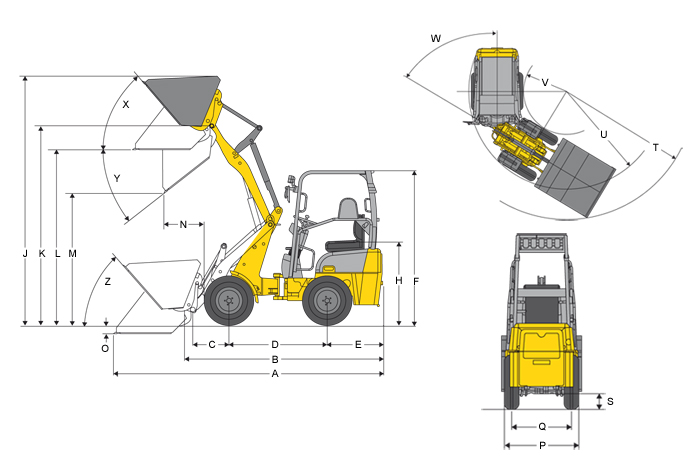

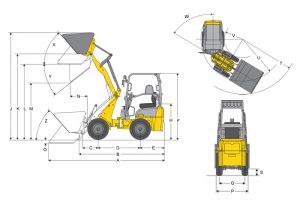

    • A
      Overall length
      3,721 mm
    • B
      Overall length without bucket
      3,063 mm
    • C
      Bucket pivot point to axle center
      508 mm
    • D
      Wheelbase
      1,468 mm
    • E
      Rear overhang
      975 mm
    • F
      Height With operator’s canopy
      2,209 mm
    • F
      Height With fold-down operator’s canopy (EPS)
      2,351 mm
    • F
      Height With fold-down operator’s canopy (EPS), folded-down
      1,928 mm
    • F
      Height With lowerable operator’s canopy (EPS Plus)
      2,255 mm
    • F
      Height With lowerable operator’s canopy (EPS Plus), lowered
      1,961 mm
    • H
      Seat height
      1,245 mm
    • J
      Total operating height
      3,294 mm
    • K
      Stroke height max. – bucket pivot point
      2,713 mm
    • L
      Overhead loading height
      2,444 mm
    • M
      Dump height max.
      2,031 mm
    • N
      Range with M
      330 mm
    • O
      Scraping depth
      74 mm
    • P
      Overall width
      1,076 mm
    • Q
      Track width
      810 mm
    • S
      Ground clearance
      207 mm
    • T
      Radius maximum
      2,681 mm
    • U
      Radius at outer edge max.
      2,356 mm
    • V
      Inside turning radius
      1,219 mm
    • W
      Articulation angle
      45 °
    • X
      Bucket rollback at max. stroke height
      50 °
    • Y
      Dump angle Maximum
      38 °
    • Z
      Bucket rollback at ground level
      48 °
