DPU3050

Reversible Vibratory Plate

Category:

Product Information Sheet

All of the technical information on this product at a glance on the Product Information Sheet.

Description

The DPU models with 30 kN centrifugal force belong to the class of versatile all around plates, which are ideal for compacting paving stones, horticulture and landscaping, and the maintenance of roads, paths and parking lots. They come with a robust integrated wheel set, like all Wacker Neuson vibratory plates in the 25 – 37 kN class. The machines of this class offer a kind of job site mobility that is unique in the market. Their great agility and compact design make these vibratory plates the perfect choice for continuous use by professionals when compacting sidewalks, trenches and other confined spaces. Different models with three operating widths are available. All come with a multitude of well thought out features:

  • That is unique! Integrated and extremely robust wheel set: Even hot asphalt or cumbersome curbs cannot harm the wheels.
  • Exceptionally long service life even with the toughest jobs: GJS-700 base plate; the optimal combination of break and wear resistance.
  • Guide handle shock mount and integrated lateral guiding systems enable effortless and precise work.

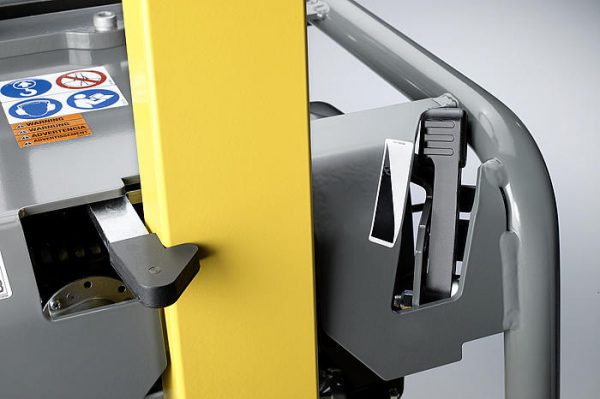

  • The automatic locking mechanism of the guide handle has no play, ensuring safe transport.
  • Powerful diesel engine with great reserve capacity. Model variations with extra fast advance travel and electric starter available.
DPU 3050H DPU 3050He E-start

Operating data

Operating weight  kg 181 206
Centrifugal force  kN 30 30
Base plate thickness  mm 10 10
Height (without guide handle) mm 758 758
Operating width  mm 500 500
Frequency  Hz 90 90
Advance travel max. (depending on soil & environmental factors) m/min 21 21
Surface capacity max. (depending on soil & environmental factors) m²/h 630 630

Engine / Motor

Engine / Motor type  Air-cooled single-cylinder diesel engine Air-cooled single-cylinder diesel engine
Engine / Motor manufacturer  Hatz Hatz
Engine / Motor  1 B 30 1 B 30
Displacement  cm³ 347 347
Engine performance max. (DIN ISO 3046)kW 5 5
at rpm  rpm 3,600 3,600
Fuel consumption  l/h 0.6 0.6
Tank capacity (fuel) l 5 5
Power transmission  From drive motor via centrifugal clutch and V-belt direct to exciter. From drive motor via centrifugal clutch and V-belt direct to exciter.
